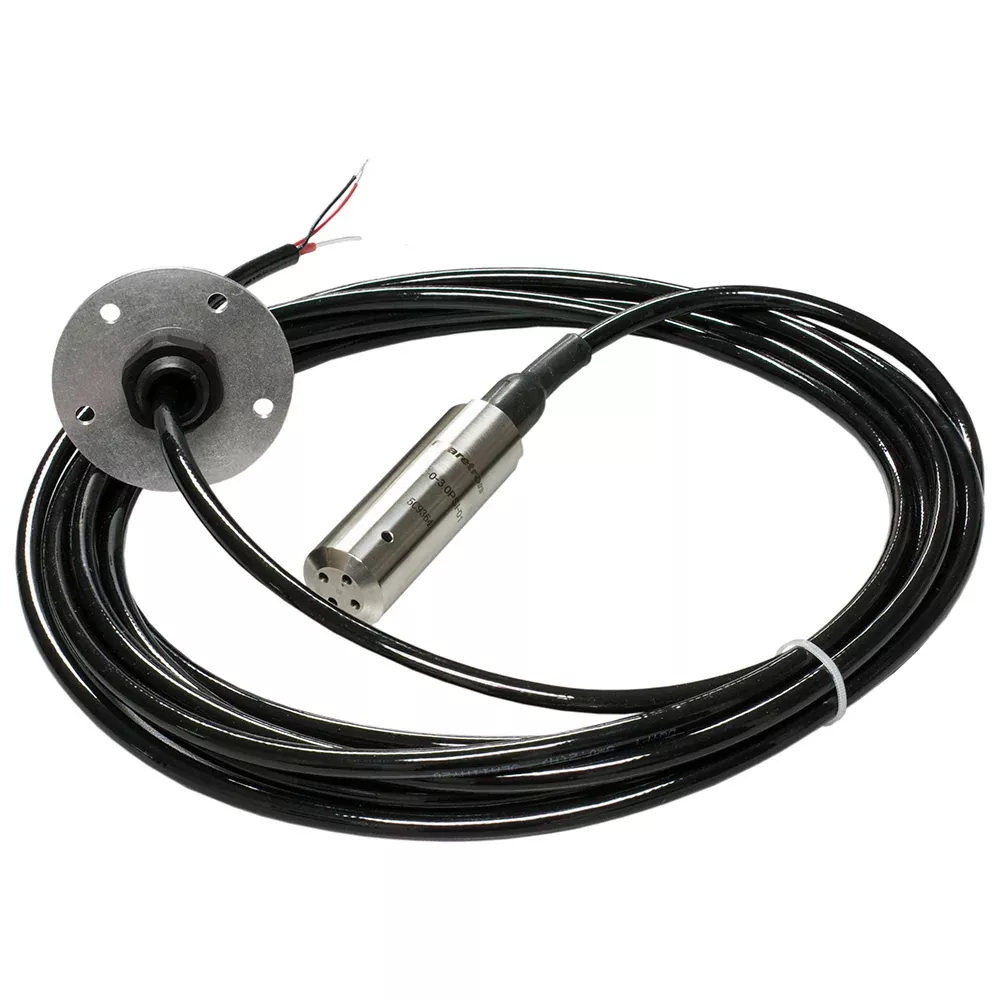

Maretron Submersible Pressure Transducer 0-3 PSI

Description

<label P0+" and the brown wire connected to "P0-." Submersible pressure transducers have a small plastic vent tube in the connecting cable.

Use a Maretron DSM Series Display (firmware 1.4.7 or higher) or a PC running Maretron’s N2KAnalyzer software (version 1.4.19 or higher) to configure the connected channel(s) on the FPM100.

Supply power to the NMEA 2000 network and verify that the pressure channel indicates a valid pressure reading.

Specifications:

• Operating Range: 0 to 3 PSI (0.207 bar)
• Depth Range (Water): 83.1” (2.11 m)
• Depth Range Diesel (820 kg/m3): 101.3” (2.57 m)
• Depth Range Gasoline/Petrol (750 kg/m3): 110.8” (2.81 m)
• Cable Length: 17 ft (5.18 m)
• Sensor Type: Gauge (Vent Tube)
• Output: 4 – 20 mA current loop, loop powered
• Excitation Voltage: 8 VDC to 28 VDC
• Compatible Fluids / Gases: Diesel, Diesel Exhaust Fluid (DEF), Gasoline/Petrol, Hydraulic Fluid, Kerosene, Motor Oil, Fresh Water, Sea Water, Waste Water
• Operating Temperature: 14 degrees F to 158 degrees F (-10 degrees C to 80 degrees C)
• Storage Temperature: -4 degrees F to 176 degrees F (-20 degrees C to 80 degrees C)
• Accuracy: ±0.3% Full Scale typ. at 25°C
• Total Error Band (TEB): ±1.0% Full Scale typ. (-10 degrees C to 70 degrees C)
• Non-Linearity, Hysteresis (NLH): ±0.2% Full-Scale typ. Best Straight Line (BSL) at 25°C
• Temperature Compensation: 23 degrees F to 122 degrees F (0 degrees C to 50 degrees C)
• Accuracy: ±1% Full Scale
• Linearity: 0.5% Full Scale
• Repeatability: 0.05% Full Scale
• Full-Scale Thermal Error: 0.04% Full Scale/°F (0.07% Full Scale/degrees C)
• Long-Term Stability: 0.2% Full Scale/year
• Response Time: 150ms
• Proof Pressure: 2 × Full Scale
• Burst Pressure: 3 × Full Scale
• Reverse Voltage Protection: ± 30V for 3 minutes
• Construction: 316L stainless steel body and diaphragm, polyether polyurethane cable, chloroprene boot
• EMC Compatibility: 10 Volts/meter per EN 61000-4-3
• Weight: 24.8oz (703g)
