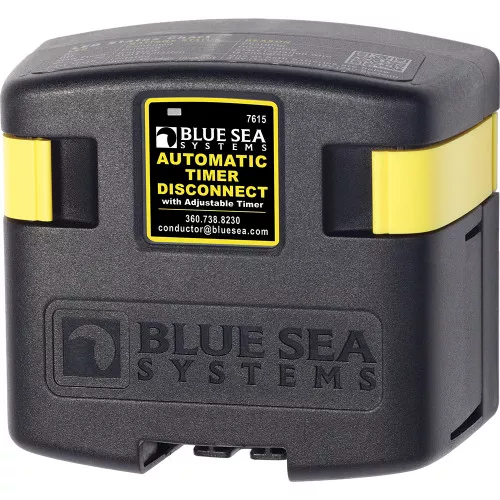

7615 Blue Sea 7615 ATD Automatic Timer Disconnect

7615 Blue Sea 7615 ATD Automatic Timer Disconnect

Original price was: $93.23.Current price is: $73.36.

SKU: MMCW64363 Category: Tag:

Description

Description

BLUE SEA 7615 ATD AUTOMATIC TIMER DISCONNECT

Manufacturer’s Part Number: 7615

ATD Automatic Timer Disconnect

Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power

  • 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time
  • Disconnect can be triggered based on time, low voltage, or removal of 12V signal
  • Low voltage will disconnect if time hasn_t been reached to preserve battery power
  • Time and voltage options can be turned off to allow 12V signal based disconnect
  • Clip-on cover insulates terminal connections
  • One-piece stainless flange nuts ensure safe and secure connections
  • Integrated LED indicates status

Specifications:

  • Nominal Voltage:12V DC
  • Amperage Operating Current: 175mACombine / 15mAOpen
  • Continuous Rating:120A
  • Intermittent Duty: 210
  • Terminal Stud Size: 3/8″-16 M10
  • Time Range: 15min-4hrs

Disclaimer: Descriptions and pictures are provided by the manufacturer and may be used for multiple variations or parts.
