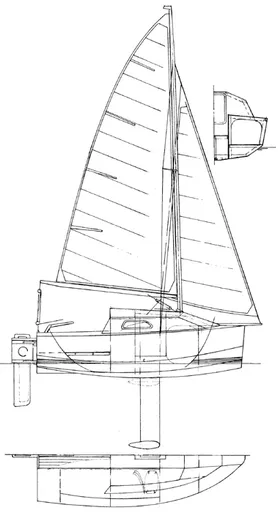

4M Mini Yacht Plans

4M Mini Yacht Plans

Original price was: $27.20.Current price is: $19.76.

Category:

Description

At just over 13′ length, the 4m Mini Yacht has 2 berths and space for a portable wc inside plus large areas for stowage or floatation.

She has a daggerboard type keel with a steel core and lead bulb which is bolted in place for sailing but which can be raised using the main halyard for easy trailing.

Construction is based on a ply framework consisting of ply bulkheads and a ply fore and aft girder which incorporates the keel box. The planks can then be fitted and finished using the simple stitch and tape method for the chine seams.

4m Mini Yacht Particulars
LOA 13′ 1 1/2″ 4.00m
Beam 6’7 1/2″ 2.02m
Hull Mid Depth 2′ 9 1/2″ 0.85m
Draft 1’5″/5’5″ 0.43/1.66m
Sail Area 128 sq.ft 11.9 sq.m
Approx. Dry Weight 992 lbs 450 kg
Ballast 300 lbs 135 kg
Maximum Headroom 4’2″ 1.27m
Hull Shape Flat narrow bottom plus 3 planks per side
Construction Methods Stitch and tape
Major plywood requirements for hull 16 x 6mm sheets6 x 9mm sheets
Guidance Use Inland, estuary and coastal for 2 adults
Drawing/Design Package 6 x A1 drawings + 7 x A4 instruction sheets
Additions and alterations included with the plans
