15'8" Seafox Plans

15’8″ Seafox Plans

Original price was: $48.80.Current price is: $25.65.

Category:

Description

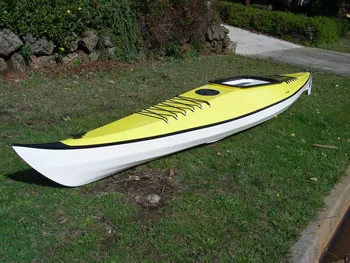

The Seafox is a development of our Seawolf design using 4 planks per side rather than 2 giving a well rounded and very attractive hull shape. she has storage and buoyancy areas fore and aft and a 3′ long cockpit opening. Construction uses 3 sheets of 4mm ply (Exterior or Marine) with the simple stitch and tape process.

Seafox Particulars
LOA 15’8″ 4.78m
Beam 26″ 0.66m
Mid Depth (Deck to hull bottom) 14″ 0.35m
Approx. Dry Weight 45lbs 20kg
Approx. Capacity 400lbs 181kg

Hull Shape

 V bottom and 3 chines
Construction Method Stitch and tape
Plywood Requirements 3 sheets of 4mm
Guidance Use Sea and general purpose
Drawing/Design Package 2 x A1 sheets plus 7 x A4 instruction sheets including rudder details.
